Chapter 4 · Functions and Graphs

Exercise 4.2 Class 10 Maths New Book — Solved Solutions

Absolute Value Functions (\( f(x) = |x-h| + k \)), Graphing, Vertex, Equations & Inequalities | Class 10 Mathematics

← Previous Exercise 4.1 ↑ Chapter 4 Hub Next Exercise 4.3 →

Prepared by Muhammad Tayyab, Subject Specialist Mathematics, Govt Christian High School Daska

📌 Based on National Curriculum 2023 / PECTAA Syllabus

📖 What's Inside: This exercise covers graphing absolute value functions (\( f(x) = |x-h| + k \)), finding vertex and axis of symmetry, solving absolute value equations (\( |ax+b| = c \)), and solving absolute value inequalities (\( |ax+b| \le c \) and \( |ax+b| > c \)) with number line representation. Perfect for Punjab Boards exam preparation.

Exercise 4.2 Class 10 Math PDF — View or Download

If the PDF does not load, click here to view it directly on Google Drive.

⬇️ Download Exercise 4.2 Class 10 Math PDF

Found This Helpful? Share with Friends

Help other students discover useful study notes and solutions.

Choose an app from your phone's sharing menu or use a button above.

Advertisement

📚 Related Resources – Chapter 4: Functions and Graphs

Exercise 4.2 Class 10 Maths Solutions — What's Included

This page provides complete Exercise 4.2 Class 10 Maths new book solutions for Chapter 4 – Functions and Graphs, with step-by-step workings for every question and a free PDF you can view online or download. The notes follow the PECTAA / National Curriculum 2023 syllabus for Punjab Boards.
Exercise 4.2 introduces students to absolute value functions – one of the most important function types in mathematics.

Graphing Absolute Value Functions (Q1)

By working through Question 1, students master:

Equations & Inequalities (Q2, Q3)

Questions 2 and 3 build essential skills in solving absolute value problems:

PDF Download & Board Exam Preparation

Use the Exercise 4.2 Class 10 Math PDF on this page to revise offline. Students preparing for board exams under any of the 10 BISE Punjab boards should prioritise this exercise. Graphing absolute value functions and solving absolute value inequalities are frequently tested topics. Practising every part of Q1, Q2, and Q3 by hand is highly recommended.

Muhammad Tayyab Subject Specialist Mathematics

MSc Mathematics · Govt Christian High School Daska, Sialkot, Punjab

Content reviewed against the PECTAA / National Curriculum 2023 syllabus for Class 10 Mathematics, applicable to all 10 BISE Punjab boards.

Last updated: Source: Punjab Curriculum & Textbook Board (PCTB)

📖 Exercise 4.2 – Solved Problems

1 Exercise 4.2 Class 10 Maths Question 1 — Plot Graph Absolute Value Functions

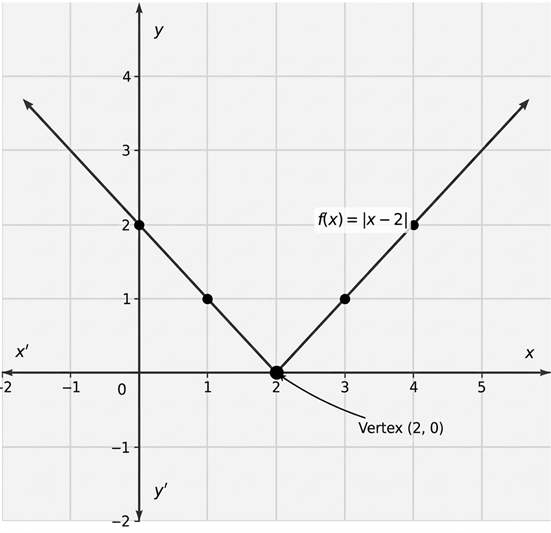

(i) \( f(x) = |x - 2| \)
Vertex: \( x - 2 = 0 \Rightarrow x = 2 \), vertex \((2,0)\). Symmetric about \(x=2\).
\[ \begin{array}{c|c|c|c|c|c} x & 0 & 1 & 2 & 3 & 4 \\ \hline f(x)=|x-2| & 2 & 1 & 0 & 1 & 2 \end{array} \]
Graph of absolute function f(x)=|x-2|

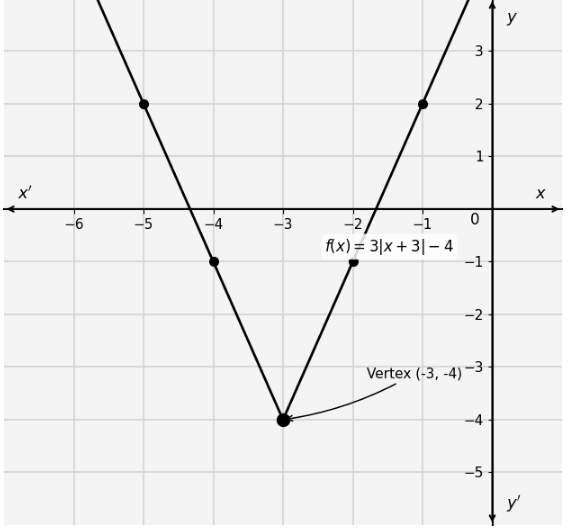

(ii) \( f(x) = 3|x+3| - 4 \)
Vertex at \(x=-3\) ⇒ \((-3,-4)\). Table:
\[ \begin{array}{c|c|c|c|c|c} x & -5 & -4 & -3 & -2 & -1 \\ \hline f(x)=3|x+3|-4 & 2 & -1 & -4 & -1 & 2 \end{array} \]
Graph of 3|x+3|-4

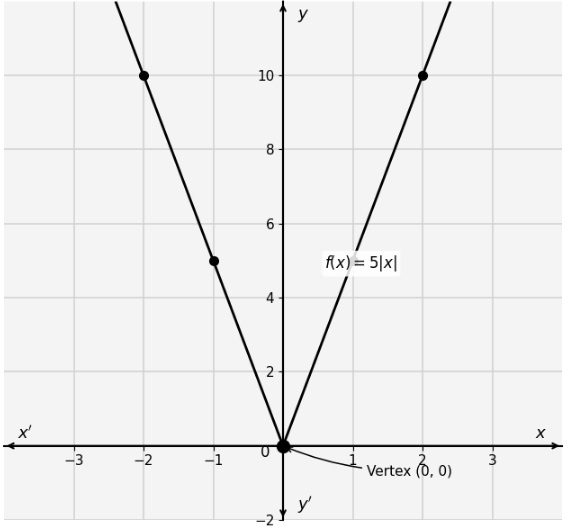

(iii) \( f(x) = 5|x| \)
Vertex at \((0,0)\). Table: \(x=-2,10\); \(x=-1,5\); \(x=0,0\); \(x=1,5\); \(x=2,10\).
Graph of 5|x|

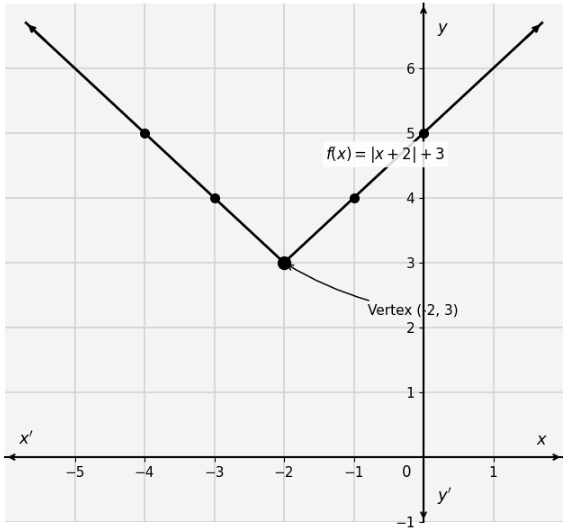

(iv) \( f(x) = |x+2| + 3 \)
Vertex: \(x=-2\) → \((-2,3)\). Symmetry about \(x=-2\).
\[ \begin{array}{c|c|c|c|c|c} x & -4 & -3 & -2 & -1 & 0 \\ \hline f(x) & 5 & 4 & 3 & 4 & 5 \end{array} \]
Graph |x+2|+3

(v) \( f(x) = 4|x+4| - 3 \)
Vertex: \(x=-4\) → \((-4,-3)\). Values: \(x=-6 \to 1\), \(-5 \to -1\), \(-4 \to -3\), \(-3 \to -1\), \(-2 \to 1\).
Graph 4|x+4|-3

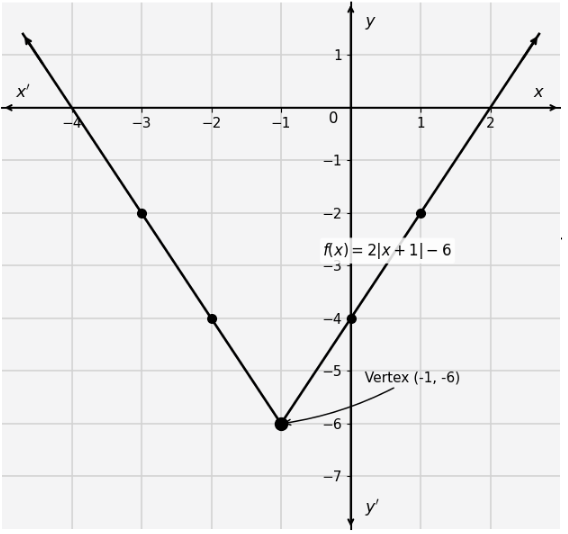

(vi) \( f(x) = 2|x+1| - 6 \)
Vertex: \(x=-1\) ⇒ \((-1,-6)\).
\[ \begin{array}{c|c|c|c|c|c} x & -3 & -2 & -1 & 0 & 1 \\ \hline f(x) & -2 & -4 & -6 & -4 & -2 \end{array} \]
Graph 2|x+1|-6

2 Exercise 4.2 Class 10 Maths Question 2 — Solve Absolute Value Equations

(i) \( |x-2| = 6 \)
\[ \begin{aligned} |x-2| &= 6 \\ \pm (x-2) &= 6 \;\Longrightarrow\; x-2 = \pm 6 \\[4pt] \text{Case 1:}&\quad x-2 = 6 \;\Rightarrow\; x = 8 \\ \text{Case 2:}&\quad x-2 = -6 \;\Rightarrow\; x = -4 \end{aligned} \]
Solution set: \( \{-4,\; 8\} \).
Number line for |x-2|=6

(ii) \( |2x+1| = 7 \)
\[ \begin{aligned} |2x+1| &= 7 \;\Rightarrow\; 2x+1 = \pm 7 \\ 2x+1 &= 7 \;\Rightarrow\; 2x = 6 \;\Rightarrow\; x = 3 \\ 2x+1 &= -7 \;\Rightarrow\; 2x = -8 \;\Rightarrow\; x = -4 \end{aligned} \]
\( S.S = \{-4,\;3\} \)
Number line

(iii) \( |4x-9| = 3 \)
\[ \begin{aligned} 4x-9 &= \pm 3 \\ 4x-9 = 3 &\;\Rightarrow\; 4x = 12 \;\Rightarrow\; x = 3 \\ 4x-9 = -3 &\;\Rightarrow\; 4x = 6 \;\Rightarrow\; x = \frac{3}{2} = 1\frac{1}{2} \end{aligned} \]
\( S.S = \left\{1\frac{1}{2},\; 3\right\} \)
Number line for 4x-9=3

(iv) \( |7-2x| = 1 \)
\[ \begin{aligned} 7-2x &= \pm 1 \\ 7-2x = 1 &\;\Rightarrow\; -2x = -6 \;\Rightarrow\; x = 3 \\ 7-2x = -1 &\;\Rightarrow\; -2x = -8 \;\Rightarrow\; x = 4 \end{aligned} \]
\( S.S = \{3,\;4\} \)
Number line

3 Exercise 4.2 Class 10 Maths Question 3 — Solve Absolute Value Inequalities

(i) \( |5x+8| \le 3 \)
\[ \begin{aligned} |5x+8| &\le 3 \;\Longrightarrow\; -3 \le 5x+8 \le 3 \\ \text{Left:}&\quad -3 \le 5x+8 \;\Rightarrow\; -11 \le 5x \;\Rightarrow\; x \ge -\frac{11}{5} = -2\frac{1}{5} \\ \text{Right:}&\quad 5x+8 \le 3 \;\Rightarrow\; 5x \le -5 \;\Rightarrow\; x \le -1 \end{aligned} \]
Solution: \(\left[-2\frac{1}{5},\; -1\right]\)
Number line interval

(ii) \( |4x-12| \le 0 \)
\[ \begin{aligned} |4x-12| &\le 0 \;\Longrightarrow\; 4x-12 = 0 \;\Rightarrow\; x = 3 \end{aligned} \]
\( S.S = \{3\} \) (single point).
Point on number line x=3

(iii) \( |3-4x| > 0 \)
\[ \begin{aligned} |3-4x| > 0 &\;\Longrightarrow\; 3-4x \neq 0 \\ &\;\Longrightarrow\; x \neq \frac{3}{4} \end{aligned} \]
Solution: \( (-\infty,\frac{3}{4}) \cup (\frac{3}{4},\infty) \)
Number line excluding 3/4

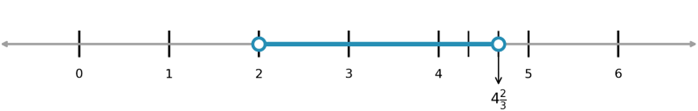

(iv) \( 1 - 2\left|\frac{3}{2}x - 5\right| > -3 \)
\[ \begin{aligned} 1 - 2\left|\frac{3}{2}x - 5\right| &> -3 \\ - 2\left|\frac{3}{2}x - 5\right| &> -4 \\ \left|\frac{3}{2}x - 5\right| &< 2 \\ -2 < \frac{3}{2}x - 5 &< 2 \\ 3 < \frac{3}{2}x &< 7 \\ 2 < x &< \frac{14}{3} = 4\frac{2}{3} \end{aligned} \]
\( S.S = \left(2,\; 4\frac{2}{3}\right) \)
Open interval number line

(v) \( |3x-2| \le 12 \)
\[ \begin{aligned} |3x-2| &\le 12 \;\Longrightarrow\; -12 \le 3x-2 \le 12 \\ -10 &\le 3x \le 14 \\ -\frac{10}{3} &\le x \le \frac{14}{3} \end{aligned} \]
Solution: \(\left[-3\frac{1}{3},\; 4\frac{2}{3}\right]\)
Closed interval

(vi) \( |1-2x| > 5 \)
\[ \begin{aligned} |1-2x| > 5 &\;\Longrightarrow\; 1-2x < -5 \quad \text{or} \quad 1-2x > 5 \\ &\text{Case 1: } 1-2x < -5 \;\Rightarrow\; -2x < -6 \;\Rightarrow\; x > 3 \\ &\text{Case 2: } 1-2x > 5 \;\Rightarrow\; -2x > 4 \;\Rightarrow\; x < -2 \end{aligned} \]
Solution: \( (-\infty,-2) \cup (3,\infty) \)
Two intervals on number line

📝 Multiple Choice Questions (Chapter 4 Practice)

1. The vertex of \( f(x) = |x-3| + 2 \) is:

✅ Correct Answer: (A) \((3, 2)\)
For \( f(x) = |x-h| + k \), the vertex is \((h,k)\). Here \( h=3, k=2 \).

2. The solutions of \( |x-4| = 5 \) are:

✅ Correct Answer: (C) 9 and -1
\( |x-4| = 5 \implies x-4 = \pm 5 \implies x = 9 \) or \( x = -1 \).

3. The solution of \( |2x+1| \le 3 \) is:

✅ Correct Answer: (A) \([-2, 1]\)
\( -3 \le 2x+1 \le 3 \implies -4 \le 2x \le 2 \implies -2 \le x \le 1 \).

4. The graph of \( f(x) = |x| \) is symmetric about:

✅ Correct Answer: (B) \(y\)-axis
\( f(-x) = |-x| = |x| = f(x) \), so the graph is symmetric about the \(y\)-axis.

5. The solution of \( |3x-6| > 0 \) is:

✅ Correct Answer: (C) All real numbers except 2
\( |3x-6| > 0 \implies 3x-6 \neq 0 \implies x \neq 2 \).

📈 Key Concepts – Absolute Value Functions

Exercise 4.2 Class 10 Maths — FAQs

What is taught in Exercise 4.2 of Class 10 Math Chapter 4?

Exercise 4.2 covers absolute value functions: graphing \( f(x) = |x-h| + k \), finding the vertex and axis of symmetry, solving absolute value equations \( |ax+b| = c \), and solving absolute value inequalities \( |ax+b| \le c \) and \( |ax+b| > c \) with number line representation.

How many questions are there in Chapter 4 Exercise 4.2?

Exercise 4.2 has 3 main questions: Question 1 has 6 parts covering graphing absolute value functions, Question 2 has 4 parts covering solving absolute value equations, and Question 3 has 6 parts covering solving absolute value inequalities.

What is the vertex of \( f(x) = |x-h| + k \) ?

The vertex of \( f(x) = |x-h| + k \) is at the point \( (h, k) \). The graph is V-shaped and symmetric about the vertical line \( x = h \).

How do you solve \( |ax+b| = c \) ?

To solve \( |ax+b| = c \), set \( ax+b = c \) and \( ax+b = -c \). Both solutions are valid if \( c \ge 0 \).

How do you solve \( |ax+b| \le c \) ?

To solve \( |ax+b| \le c \), rewrite as \( -c \le ax+b \le c \) and solve for \( x \). The solution is a closed interval.

Is this solution according to the PECTAA syllabus?

Yes, these solutions are prepared according to the PECTAA / National Curriculum 2023 syllabus for Class 10 Mathematics.

Is this Exercise 4.2 solution valid for all Punjab Boards?

Yes, the content follows the unified Punjab textbook and is applicable to students of all 10 BISE Punjab boards.

Are solved PDF notes available for Exercise 4.2?

Yes, a complete solved PDF for Exercise 4.2 is embedded on this page and available to download for free.

Can I download the Chapter 4 Exercise 4.2 solution as a PDF?

Yes, use the Download PDF button on this page to save the complete solved Exercise 4.2 notes to your device.

Is Exercise 4.2 important for Class 10 board exams?

Yes, absolute value functions, equations, and inequalities are frequently tested in board exams. Exercise 4.2 builds essential skills in graphing and solving absolute value problems.

Who prepared these Class 10 Math Chapter 4 notes?

These notes were prepared by Muhammad Tayyab, Subject Specialist Mathematics at Govt Christian High School Daska, for Hira Science Academy.
