Class 10 Math Unit 4 Exercise 4.2 – Absolute Value Functions: Complete Guide

Exercise 4.2 of Unit 4 introduces students to absolute value functions – one of the most important function types in mathematics. Students learn to graph $ f(x) = |x-h| + k $, identify the vertex and axis of symmetry, and solve absolute value equations and inequalities. These skills are essential for understanding transformations and piecewise functions.

What You Will Learn

By working through Exercise 4.2, students master: graphing absolute value functions by finding the vertex and using symmetry, identifying the vertex $(h,k)$ from $ f(x) = |x-h| + k $, solving absolute value equations $ |ax+b| = c $, and solving absolute value inequalities $ |ax+b| \le c $ and $ |ax+b| > c $ with number line representation.

Topics Covered in This Exercise

Graphing Absolute Value Functions – $ f(x) = |x-h| + k $ with vertex $(h,k)$
Axis of Symmetry – vertical line $ x = h $
Absolute Value Equations – $ |ax+b| = c $ with two solutions
Absolute Value Inequalities – $ |ax+b| \le c $ and $ |ax+b| > c $
Number Line Representation – intervals and solution sets

Why Exercise 4.2 Is Important

Exercise 4.2 builds on the function concepts from Exercise 4.1 and introduces absolute value functions. Board exam papers frequently feature questions on graphing absolute value functions and solving absolute value equations and inequalities. These skills are essential for higher mathematics.

Punjab Board Preparation

Students preparing for board exams under any of the 10 BISE Punjab boards should prioritise this exercise. Graphing absolute value functions and solving absolute value inequalities are frequently tested topics. Practising every part of Q1, Q2, and Q3 by hand is highly recommended.

Exam Tips for Absolute Value Functions

Remember: $ |x| = x $ if $ x \ge 0 $, and $ |x| = -x $ if $ x < 0 $.
For $ f(x) = |x-h| + k $, vertex is $(h,k)$.
For $ |ax+b| = c $, two solutions: $ ax+b = c $ and $ ax+b = -c $.
For $ |ax+b| \le c $, solution is $-c \le ax+b \le c$.
For $ |ax+b| > c $, solution is $ ax+b < -c $ or $ ax+b > c $.

Common Mistakes Students Make

Forgetting the vertex is $(h,k)$ and reversing signs.
Not checking if $ c $ is negative in absolute value equations.
Confusing $ \le $ and $ < $ when writing intervals.
Forgetting to flip inequality sign when multiplying by negative.

Muhammad Tayyab Subject Specialist Mathematics

MSc Mathematics · Govt Christian High School Daska, Sialkot, Punjab

Content reviewed against the PECTAA 2026 / National Curriculum 2023 syllabus for Class 10 Mathematics, applicable to all 10 BISE Punjab boards.

Last updated: August 6, 2026 Source: Punjab Curriculum & Textbook Board (PCTB)

📖 Exercise 4.2 – Solved Problems

1 Plot graph for the following absolute valued functions:

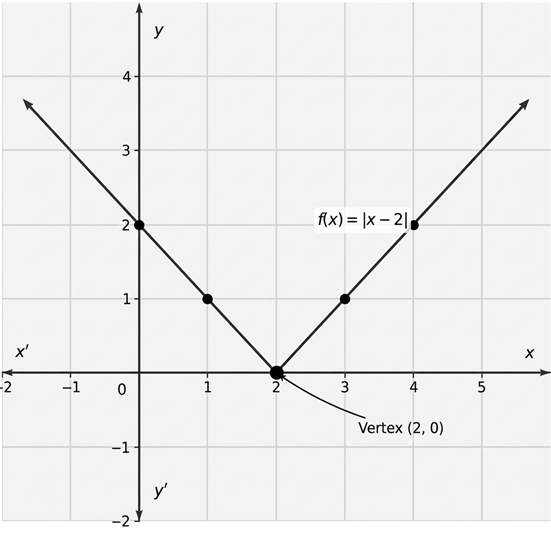

(i) $ f(x) = |x - 2| $
Vertex: $ x - 2 = 0 \Rightarrow x = 2 $, vertex $(2,0)$. Symmetric about $x=2$.
\[ \begin{array}{c|c|c|c|c|c} x & 0 & 1 & 2 & 3 & 4 \\ \hline f(x)=|x-2| & 2 & 1 & 0 & 1 & 2 \end{array} \]

$Graph of absolute function f(x)=|x-2|$

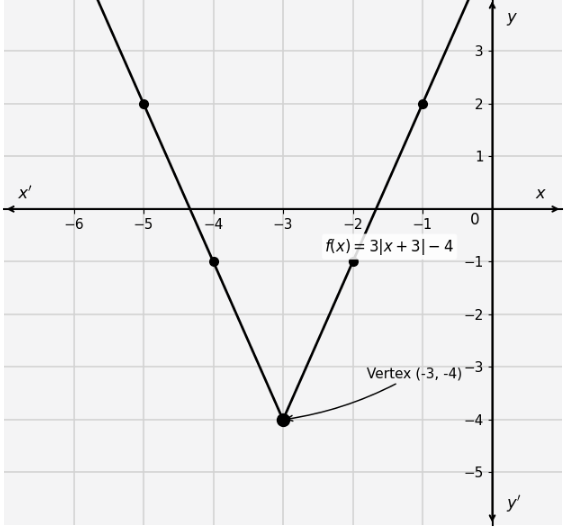

(ii) $ f(x) = 3|x+3| - 4 $
Vertex at $x=-3$ ⇒ $(-3,-4)$. Table:
\[ \begin{array}{c|c|c|c|c|c} x & -5 & -4 & -3 & -2 & -1 \\ \hline f(x)=3|x+3|-4 & 2 & -1 & -4 & -1 & 2 \end{array} \]

$Graph of 3|x+3|-4$

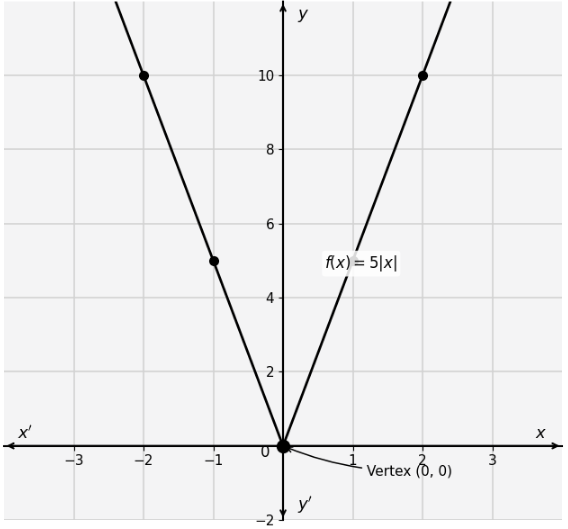

(iii) $ f(x) = 5|x| $
Vertex at $(0,0)$. Table: $x=-2,10$; $x=-1,5$; $x=0,0$; $x=1,5$; $x=2,10$.

$Graph of 5|x|$

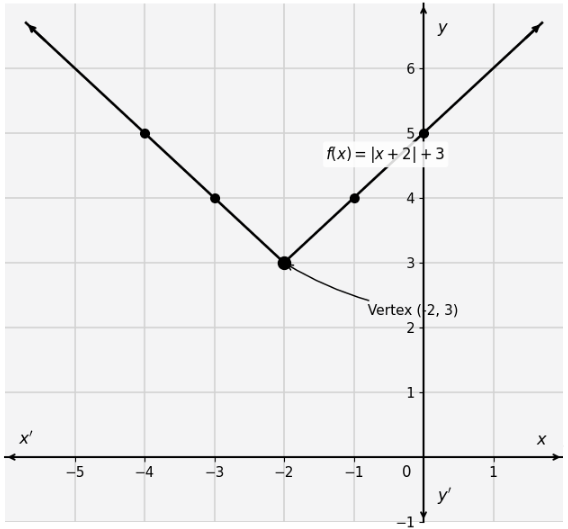

(iv) $ f(x) = |x+2| + 3 $
Vertex: $x=-2$ → $(-2,3)$. Symmetry about $x=-2$.
\[ \begin{array}{c|c|c|c|c|c} x & -4 & -3 & -2 & -1 & 0 \\ \hline f(x) & 5 & 4 & 3 & 4 & 5 \end{array} \]

$Graph |x+2|+3$

(v) $ f(x) = 4|x+4| - 3 $
Vertex: $x=-4$ → $(-4,-3)$. Values: $x=-6 \to 1$, $-5 \to -1$, $-4 \to -3$, $-3 \to -1$, $-2 \to 1$.

$Graph 4|x+4|-3$

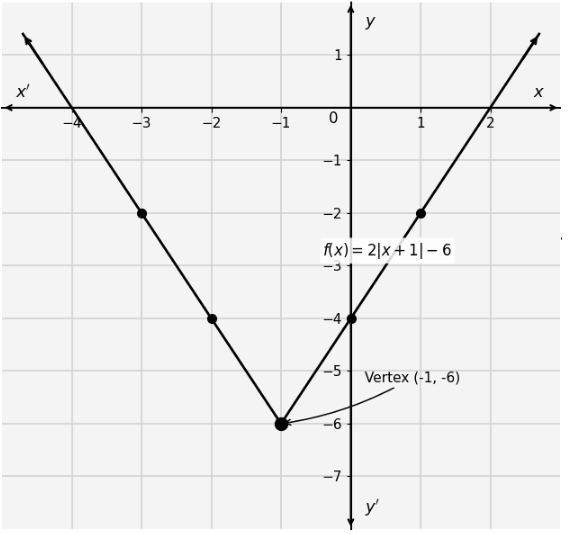

(vi) $ f(x) = 2|x+1| - 6 $
Vertex: $x=-1$ ⇒ $(-1,-6)$.
\[ \begin{array}{c|c|c|c|c|c} x & -3 & -2 & -1 & 0 & 1 \\ \hline f(x) & -2 & -4 & -6 & -4 & -2 \end{array} \]

$Graph 2|x+1|-6$

2 Solve and express the solution on a number line

(i) $ |x-2| = 6 $
\[ \begin{aligned} |x-2| &= 6 \\ \pm (x-2) &= 6 \;\Longrightarrow\; x-2 = \pm 6 \\[4pt] \text{Case 1:}&\quad x-2 = 6 \;\Rightarrow\; x = 8 \\ \text{Case 2:}&\quad x-2 = -6 \;\Rightarrow\; x = -4 \end{aligned} \] Solution set: $ \{-4,\; 8\} $.

$Number line for |x-2|=6$

(ii) $ |2x+1| = 7 $
\[ \begin{aligned} |2x+1| &= 7 \;\Rightarrow\; 2x+1 = \pm 7 \\ 2x+1 &= 7 \;\Rightarrow\; 2x = 6 \;\Rightarrow\; x = 3 \\ 2x+1 &= -7 \;\Rightarrow\; 2x = -8 \;\Rightarrow\; x = -4 \end{aligned} \] $ S.S = \{-4,\;3\} $

$Number line$

(iii) $ |4x-9| = 3 $
\[ \begin{aligned} 4x-9 &= \pm 3 \\ 4x-9 = 3 &\;\Rightarrow\; 4x = 12 \;\Rightarrow\; x = 3 \\ 4x-9 = -3 &\;\Rightarrow\; 4x = 6 \;\Rightarrow\; x = \frac{3}{2} = 1\frac{1}{2} \end{aligned} \] $ S.S = \left\{1\frac{1}{2},\; 3\right\} $

$Number line for 4x-9=3$

(iv) $ |7-2x| = 1 $
\[ \begin{aligned} 7-2x &= \pm 1 \\ 7-2x = 1 &\;\Rightarrow\; -2x = -6 \;\Rightarrow\; x = 3 \\ 7-2x = -1 &\;\Rightarrow\; -2x = -8 \;\Rightarrow\; x = 4 \end{aligned} \] $ S.S = \{3,\;4\} $

$Number line$

3 Solve and express the solution on number line (inequalities)

(i) $ |5x+8| \le 3 $
\[ \begin{aligned} |5x+8| &\le 3 \;\Longrightarrow\; -3 \le 5x+8 \le 3 \\ \text{Left:}&\quad -3 \le 5x+8 \;\Rightarrow\; -11 \le 5x \;\Rightarrow\; x \ge -\frac{11}{5} = -2\frac{1}{5} \\ \text{Right:}&\quad 5x+8 \le 3 \;\Rightarrow\; 5x \le -5 \;\Rightarrow\; x \le -1 \end{aligned} \] Solution: $\left[-2\frac{1}{5},\; -1\right]$

$Number line interval$

(ii) $ |4x-12| \le 0 $
\[ \begin{aligned} |4x-12| &\le 0 \;\Longrightarrow\; 4x-12 = 0 \;\Rightarrow\; x = 3 \end{aligned} \] $ S.S = \{3\} $ (single point).

$Point on number line x=3$

(iii) $ |3-4x| > 0 $
\[ \begin{aligned} |3-4x| > 0 &\;\Longrightarrow\; 3-4x \neq 0 \\ &\;\Longrightarrow\; x \neq \frac{3}{4} \end{aligned} \] Solution: $ (-\infty,\frac{3}{4}) \cup (\frac{3}{4},\infty) $

$Number line excluding 3/4$

(iv) $ 1 - 2\left|\frac{3}{2}x - 5\right| > -3 $
\[ \begin{aligned} 1 - 2\left|\frac{3}{2}x - 5\right| &> -3 \\ - 2\left|\frac{3}{2}x - 5\right| &> -4 \\ \left|\frac{3}{2}x - 5\right| &< 2 \\ -2 < \frac{3}{2}x - 5 &< 2 \\ 3 < \frac{3}{2}x &< 7 \\ 2 < x &< \frac{14}{3} = 4\frac{2}{3} \end{aligned} \] $ S.S = \left(2,\; 4\frac{2}{3}\right) $

$Open interval number line$

(v) $ |3x-2| \le 12 $
\[ \begin{aligned} |3x-2| &\le 12 \;\Longrightarrow\; -12 \le 3x-2 \le 12 \\ -10 &\le 3x \le 14 \\ -\frac{10}{3} &\le x \le \frac{14}{3} \end{aligned} \] Solution: $\left[-3\frac{1}{3},\; 4\frac{2}{3}\right]$

$Closed interval$

(vi) $ |1-2x| > 5 $
\[ \begin{aligned} |1-2x| > 5 &\;\Longrightarrow\; 1-2x < -5 \quad \text{or} \quad 1-2x > 5 \\ &\text{Case 1: } 1-2x < -5 \;\Rightarrow\; -2x < -6 \;\Rightarrow\; x > 3 \\ &\text{Case 2: } 1-2x > 5 \;\Rightarrow\; -2x > 4 \;\Rightarrow\; x < -2 \end{aligned} \] Solution: $ (-\infty,-2) \cup (3,\infty) $

$Two intervals on number line$

📝 Multiple Choice Questions (Unit 4 Review)

1. The vertex of $ f(x) = |x-3| + 2 $ is:

A) $(3, 2)$ B) $(-3, 2)$ C) $(3, -2)$ D) $(-3, -2)$

✅ Correct Answer: (A) $(3, 2)$
For $ f(x) = |x-h| + k $, the vertex is $(h,k)$. Here $ h=3, k=2 $.

2. The solutions of $ |x-4| = 5 $ are:

A) $9$ only B) $-1$ only C) $9$ and $-1$ D) No solution

✅ Correct Answer: (C) 9 and -1
$ |x-4| = 5 \implies x-4 = \pm 5 \implies x = 9 $ or $ x = -1 $.

3. The solution of $ |2x+1| \le 3 $ is:

A) $[-2, 1]$ B) $[-1, 2]$ C) $(-\infty, -2] \cup [1, \infty)$ D) $(-2, 1)$

✅ Correct Answer: (A) $[-2, 1]$
$ -3 \le 2x+1 \le 3 \implies -4 \le 2x \le 2 \implies -2 \le x \le 1 $.

4. The graph of $ f(x) = |x| $ is symmetric about:

A) $x$-axis B) $y$-axis C) Origin D) Line $y=x$

✅ Correct Answer: (B) $y$-axis
$ f(-x) = |-x| = |x| = f(x) $, so the graph is symmetric about the $y$-axis.

5. The solution of $ |3x-6| > 0 $ is:

A) All real numbers B) $x = 2$ C) All real numbers except 2 D) No solution

✅ Correct Answer: (C) All real numbers except 2
$ |3x-6| > 0 \implies 3x-6 \neq 0 \implies x \neq 2 $.

📈 Key Concepts – Absolute Value Functions

Absolute Value Definition: $ |x| = \begin{cases} x & x\ge 0 \\ -x & x<0 \end{cases} $
Graph Vertex: For $ f(x)=a|x-h|+k $, vertex at $(h,k)$, axis $x=h$
Equation Solution: $ |X| = a \Rightarrow X = \pm a $ (if $a\ge0$)
Inequality: $ |X| < a \Rightarrow -a < X < a$; $ |X| > a \Rightarrow X < -a \text{ or } X > a$

❓ Frequently Asked Questions

What is taught in Exercise 4.2 of Class 10 Math Unit 4?

Exercise 4.2 covers absolute value functions: graphing $ f(x) = |x-h| + k $, finding the vertex and axis of symmetry, solving absolute value equations $ |ax+b| = c $, and solving absolute value inequalities $ |ax+b| \le c $ and $ |ax+b| > c $ with number line representation.

How many questions are there in Unit 4 Exercise 4.2?

Exercise 4.2 has 3 main questions: Question 1 has 6 parts covering graphing absolute value functions, Question 2 has 4 parts covering solving absolute value equations, and Question 3 has 6 parts covering solving absolute value inequalities.

What is the vertex of $ f(x) = |x-h| + k $ ?

The vertex of $ f(x) = |x-h| + k $ is at the point $ (h, k) $. The graph is V-shaped and symmetric about the vertical line $ x = h $.

How do you solve $ |ax+b| = c $ ?

To solve $ |ax+b| = c $, set $ ax+b = c $ and $ ax+b = -c $. Both solutions are valid if $ c \ge 0 $.

How do you solve $ |ax+b| \le c $ ?

To solve $ |ax+b| \le c $, rewrite as $ -c \le ax+b \le c $ and solve for $ x $. The solution is a closed interval.

Is this solution according to the PECTAA 2026 syllabus?

Yes, these solutions are prepared according to the PECTAA 2026 / National Curriculum 2023 syllabus for Class 10 Mathematics.

Is this Exercise 4.2 solution valid for all Punjab Boards?

Yes, the content follows the unified Punjab textbook and is applicable to students of all 10 BISE Punjab boards.

Are solved PDF notes available for Exercise 4.2?

Yes, a complete solved PDF for Exercise 4.2 is embedded on this page and available to download for free.

Can I download the Unit 4 Exercise 4.2 solution as a PDF?

Yes, use the Download PDF button on this page to save the complete solved Exercise 4.2 notes to your device.

Is Exercise 4.2 important for Class 10 board exams?

Yes, absolute value functions, equations, and inequalities are frequently tested in board exams. Exercise 4.2 builds essential skills in graphing and solving absolute value problems.

Who prepared these Class 10 Math Unit 4 notes?

These notes were prepared by Muhammad Tayyab, Subject Specialist Mathematics at Govt Christian High School Daska, for Hira Science Academy.
