Class 10 Math Unit 2 Exercise 2.2 – Graphical Solutions: Complete Guide

Exercise 2.2 of Unit 2 introduces students to graphical solutions of equations. Students learn to find intercepts of linear equations, solve systems of linear equations graphically, and solve linear-quadratic systems. These visual methods help students understand the geometric meaning of equations and their solutions.

What You Will Learn

By working through Exercise 2.2, students master: finding \( x \)-intercepts (put \( y=0 \)) and \( y \)-intercepts (put \( x=0 \)) of linear equations, solving systems of linear equations by plotting both lines and finding their intersection, and solving linear-quadratic systems by finding intersection points of a line and a parabola.

Topics Covered in This Exercise

Intercepts of Linear Equations – finding \( x \) and \( y \) intercepts graphically
Linear Systems Graphically – solving \( 2 \times 2 \) systems by graphing
Linear-Quadratic Systems – finding intersection points of a line and a parabola
Algebraic Verification – confirming graphical solutions algebraically

Why Exercise 2.2 Is Important

Exercise 2.2 builds essential graphing skills. Board exam papers frequently feature questions on graphical solutions, especially intercepts and systems. This exercise helps students visualize the relationship between algebraic equations and their geometric representations.

Punjab Board Preparation

Students preparing for board exams under any of the 10 BISE Punjab boards should prioritise this exercise. Graphical methods are frequently tested, and intercept questions appear regularly. Practising every part of Q1, Q2, and Q3 by hand is highly recommended.

Exam Tips for Graphical Solutions

For \( x \)-intercept: set \( y = 0 \) and solve for \( x \).
For \( y \)-intercept: set \( x = 0 \) and solve for \( y \).
When graphing, use at least two points for each line.
For linear-quadratic systems, the intersection points are the solutions.

Common Mistakes Students Make

Swapping \( x \) and \( y \) intercept values.
Not plotting enough points for accurate graphs.
Forgetting to verify solutions algebraically.
Misinterpreting intersection points on the graph.

Muhammad Tayyab Subject Specialist Mathematics

MSc Mathematics · Govt Christian High School Daska, Sialkot, Punjab

Content reviewed against the PECTAA 2026 / National Curriculum 2023 syllabus for Class 10 Mathematics, applicable to all 10 BISE Punjab boards.

Last updated: August 7, 2026 Source: Punjab Curriculum & Textbook Board (PCTB)

📖 Exercise 2.2 – Solved Problems

1 Points of Intersection with Axes (Graphical)

(i) \(x + y = 8\)

For \(x\)-intercept: Put \(y = 0\)

\[ x + 0 = 8 \quad\Rightarrow\quad x = 8 \]

Point: \((8,0)\)

For \(y\)-intercept: Put \(x = 0\)

\[ 0 + y = 8 \quad\Rightarrow\quad y = 8 \]

Point: \((0,8)\)

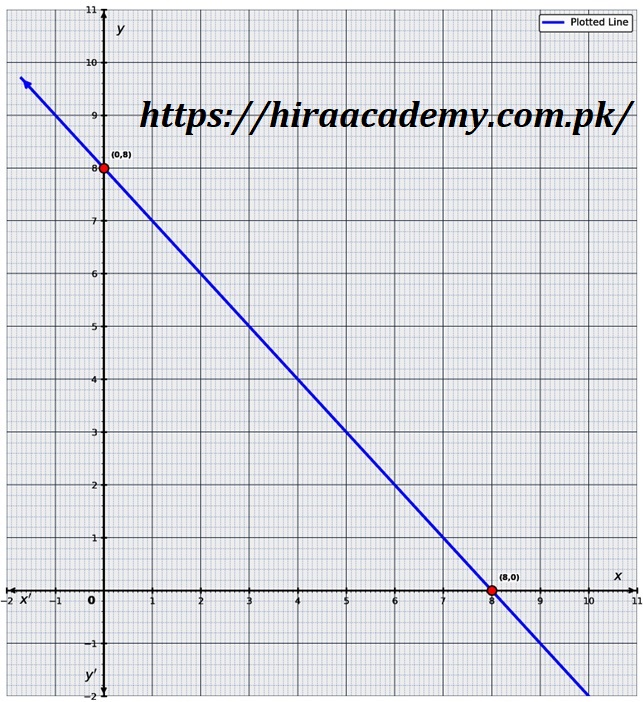

Graph of x+y=8 showing intercepts at (8,0) and (0,8)

(ii) \(x - y = 1\)

For \(x\)-intercept: Put \(y = 0\)

\[ x - 0 = 1 \quad\Rightarrow\quad x = 1 \]

Point: \((1,0)\)

For \(y\)-intercept: Put \(x = 0\)

\[ 0 - y = 1 \quad\Rightarrow\quad -y = 1 \quad\Rightarrow\quad y = -1 \]

Point: \((0,-1)\)

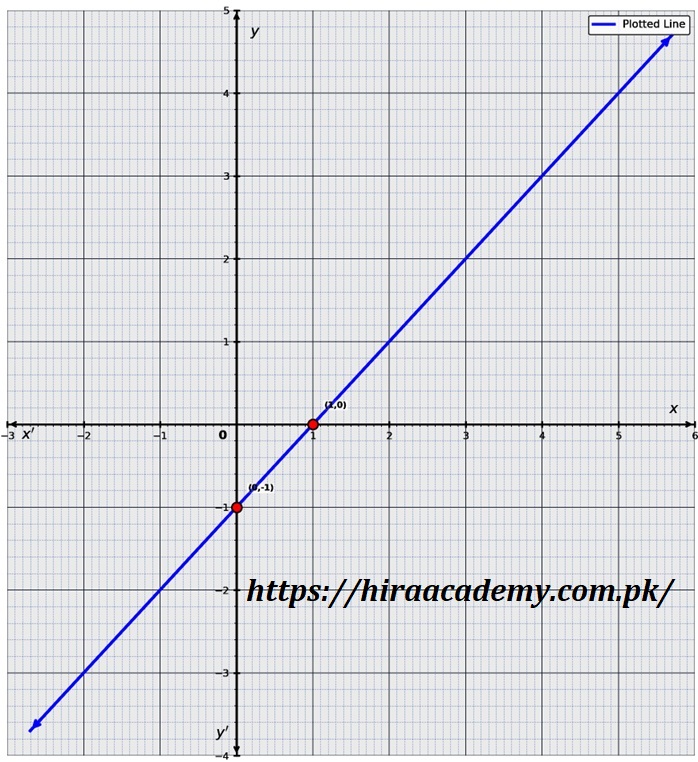

Graph of x-y=1 showing intercepts at (1,0) and (0,-1)

(iii) \(x - 2y = 1\)

For \(x\)-intercept: \(y = 0\)

\[ x - 2(0) = 1 \quad\Rightarrow\quad x = 1 \]

Point: \((1,0)\)

For \(y\)-intercept: \(x = 0\)

\[ 0 - 2y = 1 \quad\Rightarrow\quad -2y = 1 \quad\Rightarrow\quad y = -\frac{1}{2} = -0.5 \]

Point: \((0, -0.5)\)

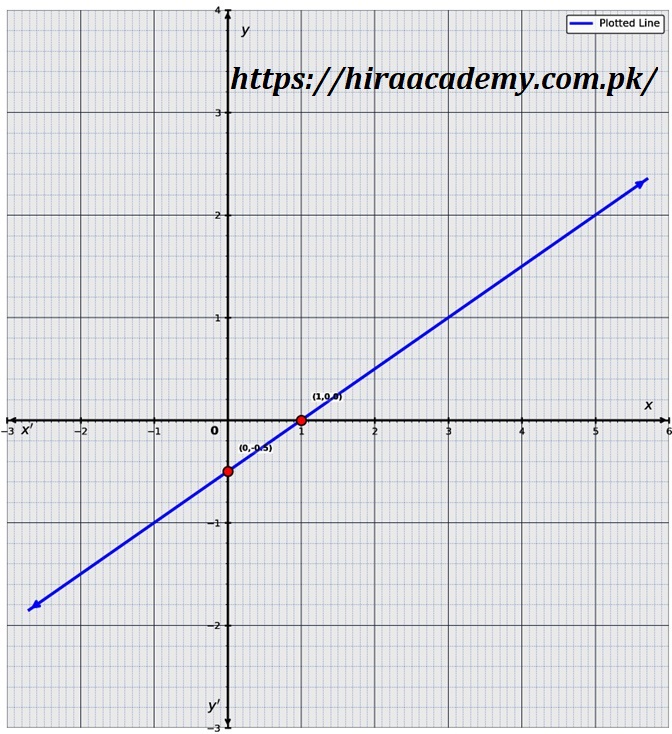

Graph of x-2y=1 showing intercepts at (1,0) and (0,-0.5)

(iv) \(x - 2y + 2 = 0\)

For \(x\)-intercept: \(y = 0\)

\[ x - 2(0) + 2 = 0 \quad\Rightarrow\quad x + 2 = 0 \quad\Rightarrow\quad x = -2 \]

Point: \((-2,0)\)

For \(y\)-intercept: \(x = 0\)

\[ 0 - 2y + 2 = 0 \quad\Rightarrow\quad -2y = -2 \quad\Rightarrow\quad y = 1 \]

Point: \((0,1)\)

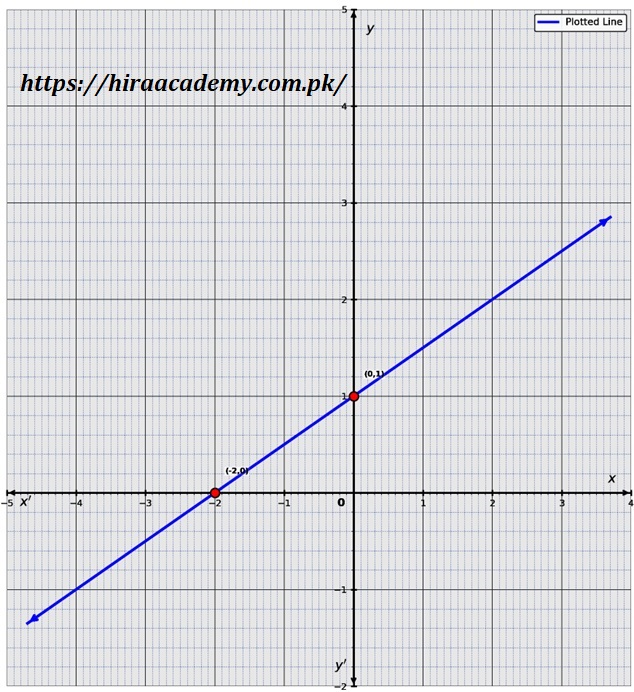

Graph of x-2y+2=0 showing intercepts at (-2,0) and (0,1)

(v) \(5x - 5y = 1\)

For \(x\)-intercept: \(y = 0\)

\[ 5x - 5(0) = 1 \quad\Rightarrow\quad 5x = 1 \quad\Rightarrow\quad x = \frac{1}{5} = 0.2 \]

Point: \((0.2, 0)\)

For \(y\)-intercept: \(x = 0\)

\[ 5(0) - 5y = 1 \quad\Rightarrow\quad -5y = 1 \quad\Rightarrow\quad y = -\frac{1}{5} = -0.2 \]

Point: \((0, -0.2)\)

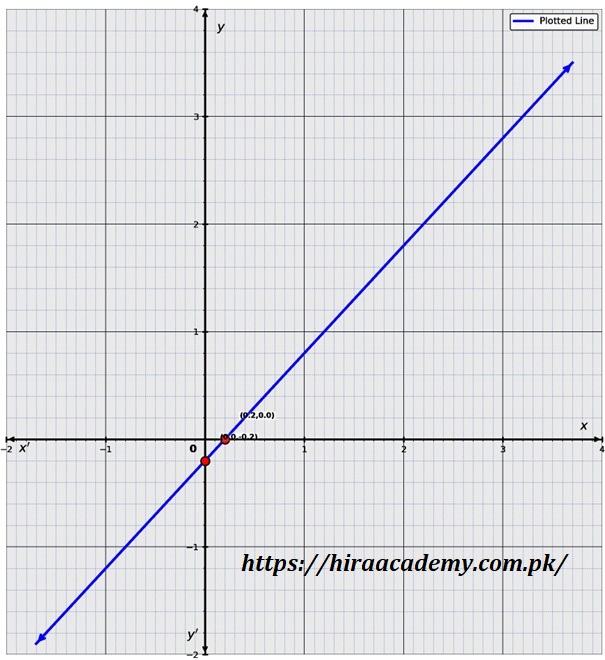

Graph of 5x-5y=1 showing intercepts at (0.2,0) and (0,-0.2)

2 Solve Systems of Linear Equations Graphically

(i) \(x + y = 8\) ; \(3x - y = 4\)

For \(x + y = 8\): \(x\)-intercept: \((8,0)\), \(y\)-intercept: \((0,8)\)

For \(3x - y = 4\): \(x\)-intercept: \(\left(\frac{4}{3},0\right)\), \(y\)-intercept: \((0,-4)\)

Point of intersection (Algebraic verification):

\[ \begin{aligned} x + y &= 8 \quad \text{(i)}\\ 3x - y &= 4 \quad \text{(ii)}\\ \text{From (i): } x &= 8 - y \\ \text{Substitute into (ii): } 3(8-y) - y &= 4 \\ 24 - 3y - y &= 4 \\ 24 - 4y &= 4 \\ 20 &= 4y \\ y &= 5 \\ x &= 8 - 5 = 3 \end{aligned} \]

Hence intersection point \(M(3,5)\).

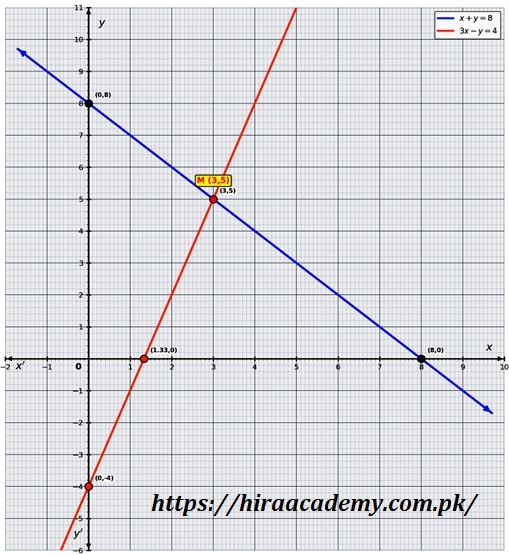

Graph showing intersection of lines x+y=8 and 3x-y=4 at point (3,5)

(ii) \(x - y = 1\) ; \(x + 2y = 7\)

Line 1: \(x - y = 1\): intercepts \((1,0)\) and \((0,-1)\).

Line 2: \(x + 2y = 7\): intercepts \((7,0)\) and \((0,3.5)\).

\[ \begin{aligned} x - y &= 1 \quad \text{(i)}\\ x + 2y &= 7 \quad \text{(ii)}\\ \text{From (i): } x &= 1 + y \\ 1 + y + 2y &= 7 \\ 1 + 3y &= 7 \\ 3y &= 6 \quad\Rightarrow\quad y = 2 \\ x &= 1 + 2 = 3 \end{aligned} \]

Intersection: \(M(3,2)\).

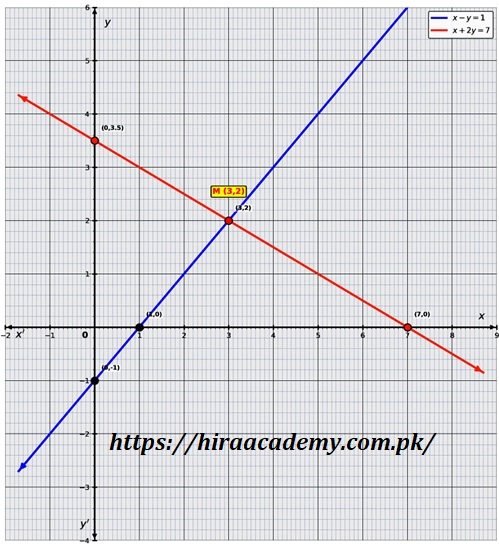

Graph showing intersection of lines x-y=1 and x+2y=7 at point (3,2)

(iii) \(x - 2y = 1\) ; \(2x + y = 2\)

\(x-2y=1\): intercepts \((1,0)\), \((0,-0.5)\). \(2x+y=2\): \((1,0)\), \((0,2)\).

\[ \begin{aligned} x - 2y &= 1 \quad\Rightarrow\quad x = 1+2y \\ 2(1+2y) + y &= 2 \\ 2 + 4y + y &= 2 \\ 5y &= 0 \quad\Rightarrow\quad y = 0 \\ x &= 1 + 0 = 1 \end{aligned} \]

Intersection: \(M(1,0)\).

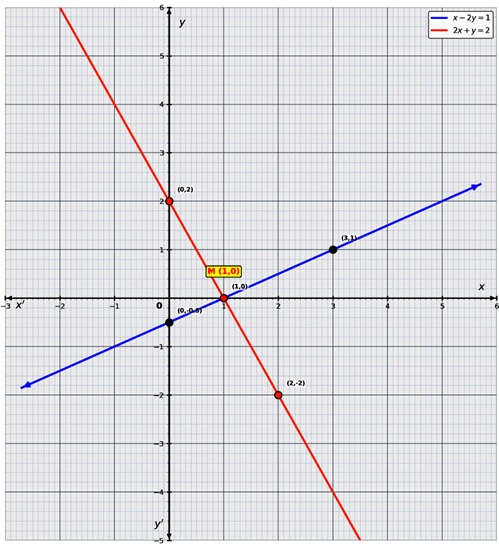

Graph showing intersection of lines x-2y=1 and 2x+y=2 at point (1,0)

(iv) \(y = 2x + 2\) ; \(3x + 2y = 4\)

Line \(y=2x+2\): intercepts: \((-1,0)\) and \((0,2)\).

\(3x+2y=4\): intercepts: \((\frac{4}{3},0)\) and \((0,2)\).

\[ \begin{aligned} y &= 2x+2 \\ 3x + 2(2x+2) &= 4 \\ 3x + 4x + 4 &= 4 \\ 7x &= 0 \quad\Rightarrow\quad x = 0 \\ y &= 2(0)+2 = 2 \end{aligned} \]

Intersection: \(M(0,2)\).

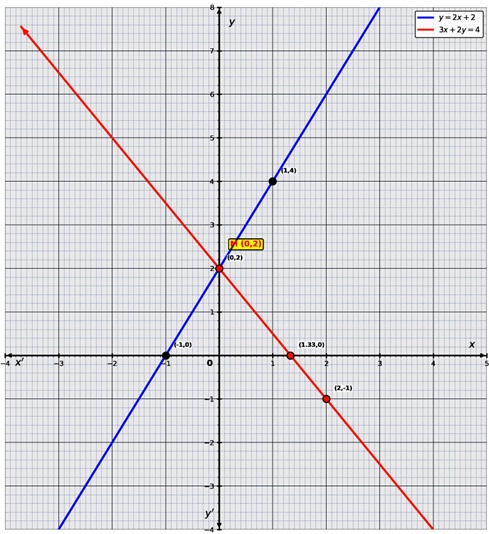

Graph showing intersection of lines y=2x+2 and 3x+2y=4 at point (0,2)

(v) \(3y = 2x + 8\) ; \(x + y = 1\)

\(3y=2x+8\): intercepts \((-4,0)\), \((0,\frac{8}{3})\).

\(x+y=1\): intercepts \((1,0)\), \((0,1)\).

\[ \begin{aligned} 3y &= 2x+8 \quad\Rightarrow\quad y = \frac{2x+8}{3} \\ x + \frac{2x+8}{3} &= 1 \\ \frac{3x + 2x+8}{3} &= 1 \\ 5x + 8 &= 3 \\ 5x &= -5 \quad\Rightarrow\quad x = -1 \\ y = \frac{2(-1)+8}{3} = \frac{-2+8}{3} = 2 \end{aligned} \]

Intersection: \(M(-1,2)\).

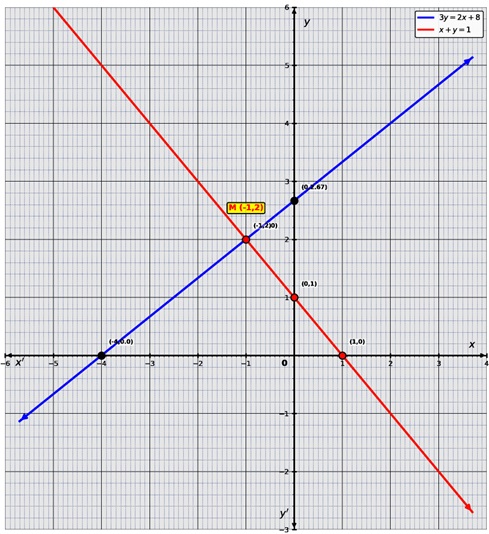

Graph showing intersection of lines 3y=2x+8 and x+y=1 at point (-1,2)

3 Solve Graphically: Linear & Quadratic Intersections

(i) \(y = 8x - 32\) ; \(y = x^2 - 6x + 8\)

Linear: \(y = 8x - 32\): \(x\)-intercept: \((4,0)\); \(y\)-intercept: \((0,-32)\).

Quadratic: \(y = x^2 - 6x + 8\). Vertex: \(x = 3\).

\(x\)	-3	-2	-1	0	1	2	3	4	5	6	7
\(y = x^2-6x+8\)	35	24	15	8	3	0	-1	0	3	8	15

Algebraic intersection:

\[ \begin{aligned} x^2 - 6x + 8 &= 8x - 32 \\ x^2 -14x + 40 &= 0 \\ (x-10)(x-4) &= 0 \\ \Rightarrow x = 10 \quad\text{or}\quad x = 4 \end{aligned} \]

For \(x=4\): \(y=8(4)-32=0\) → \((4,0)\)
For \(x=10\): \(y=8(10)-32=48\) → \((10,48)\).

Intersection points: \(M_1(4,0)\) and \(M_2(10,48)\).

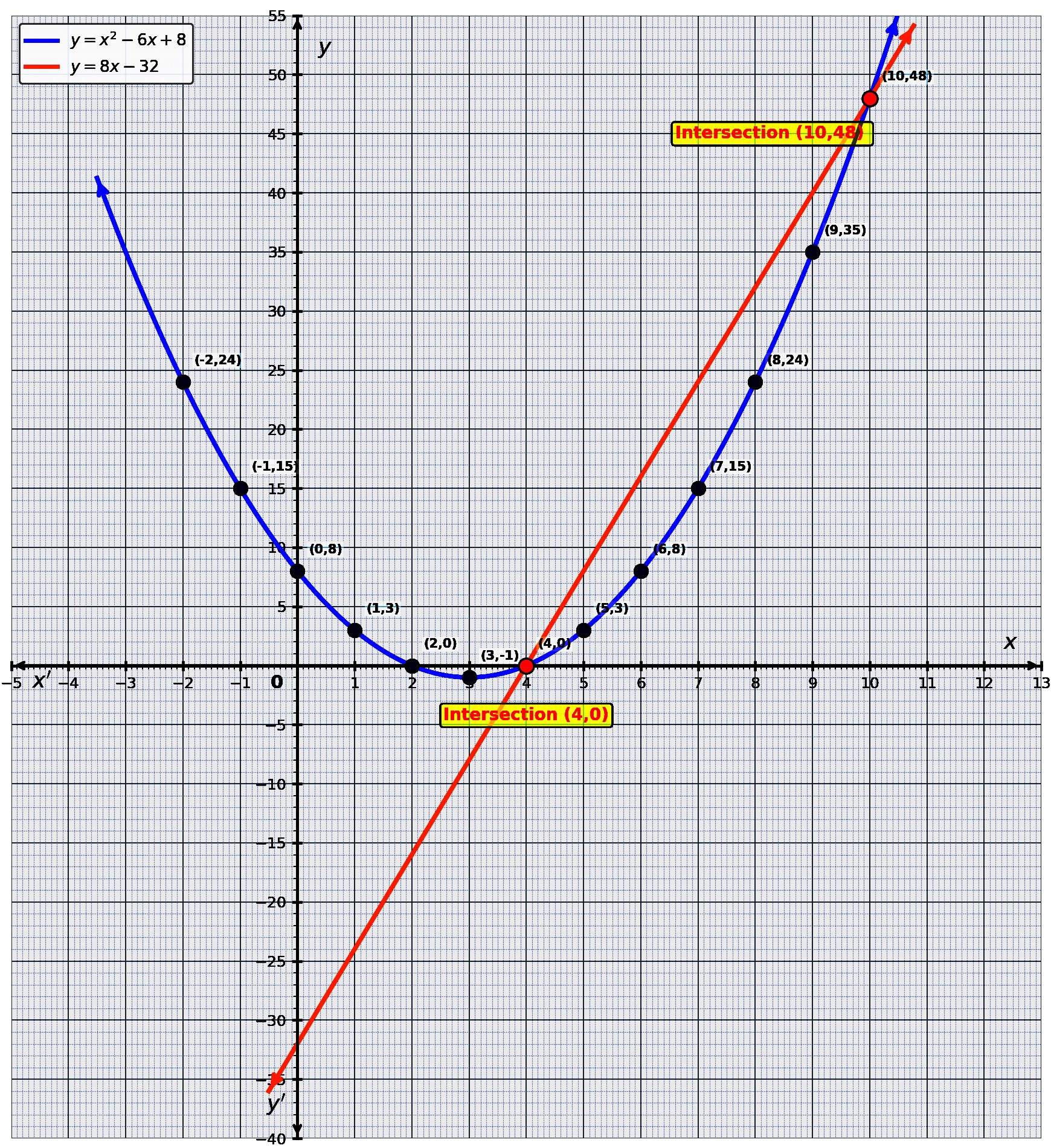

Graph of y=8x-32 and parabola y=x^2-6x+8 showing intersections at (4,0) and (10,48)

(ii) \(y + x = 2\) ; \(y = 2x^2 + x - 10\)

Rewrite linear: \(y = -x + 2\). Intercepts: \((2,0)\) and \((0,2)\).

Quadratic: \(y = 2x^2 + x - 10\). Vertex: \(x = -0.25\).

\(x\)	-4	-3	-2	-1	0	1	2	3
\(y=2x^2+x-10\)	18	5	-4	-9	-10	-7	0	11

Algebraic solution:

\[ \begin{aligned} 2x^2 + x - 10 &= -x + 2 \\ 2x^2 + 2x - 12 &= 0 \\ 2(x^2 + x - 6) &= 0 \\ x^2 + 3x - 2x - 6 &= 0 \\ x(x+3) - 2(x+3) &= 0 \\ (x-2)(x+3) &= 0 \\ \Rightarrow x = 2 \quad\text{or}\quad x = -3 \end{aligned} \]

When \(x=2\): \(y = -2 + 2 = 0\) → \((2,0)\)
When \(x=-3\): \(y = -(-3) + 2 = 5\) → \((-3,5)\).

Intersection points: \(M_1(-3,5)\) and \(M_2(2,0)\).

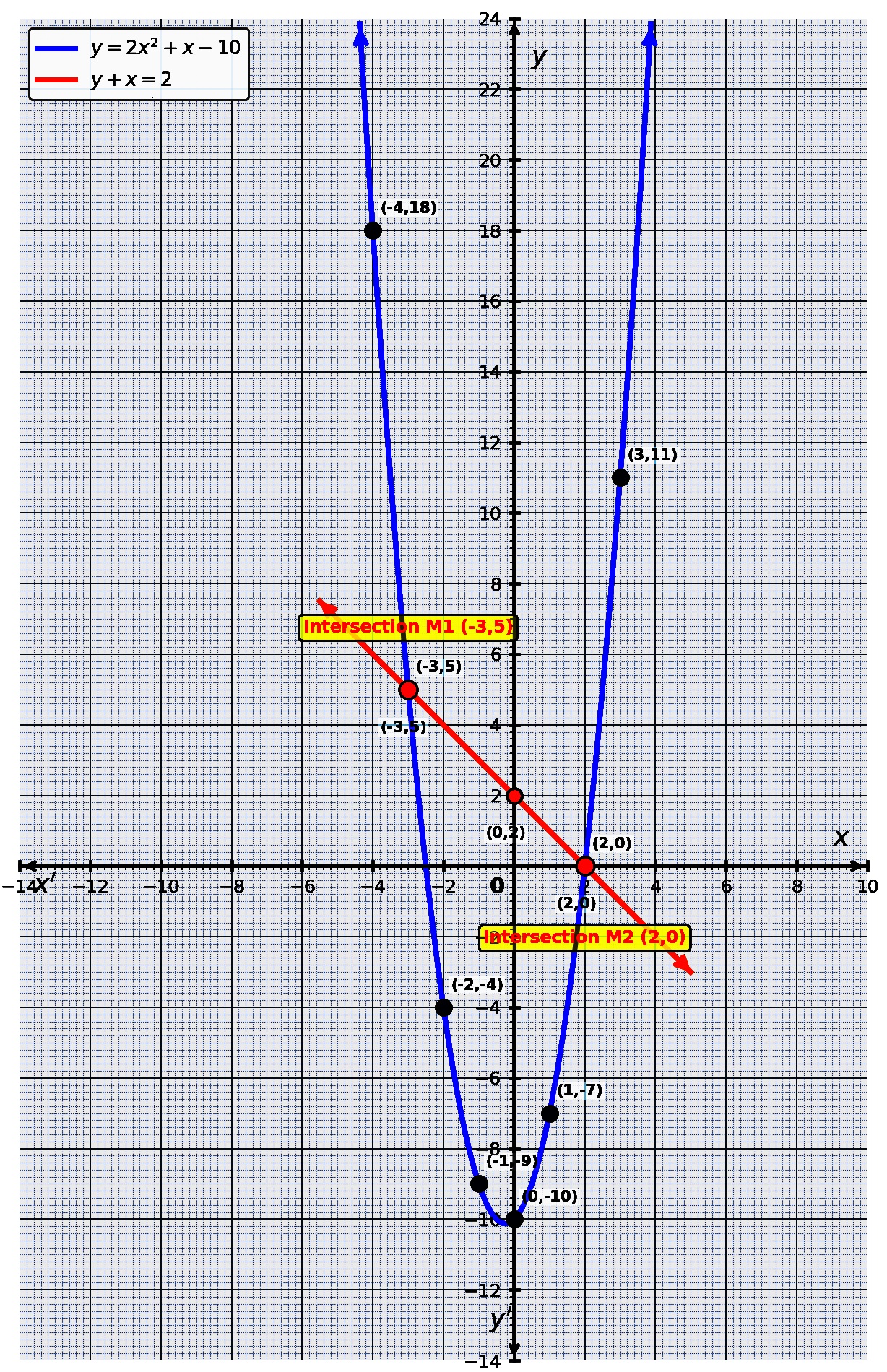

Graphical representation of line y+x=2 and parabola y=2x^2+x-10 with intersections at (-3,5) and (2,0)

📝 Multiple Choice Questions (Unit 2 Review)

1. The \(x\)-intercept of \(x + y = 8\) is:

A) \((0,8)\) B) \((8,0)\) C) \((4,4)\) D) \((0,0)\)

✅ Correct Answer: (B) \((8,0)\)
For \(x\)-intercept, put \(y=0\): \(x+0=8 \Rightarrow x=8\).

2. The \(y\)-intercept of \(x - 2y = 1\) is:

A) \((1,0)\) B) \((0, -0.5)\) C) \((0, 1)\) D) \((-1, 0)\)

✅ Correct Answer: (B) \((0, -0.5)\)
For \(y\)-intercept, put \(x=0\): \(-2y=1 \Rightarrow y=-0.5\).

3. The intersection point of \(x+y=8\) and \(3x-y=4\) is:

A) \((3,5)\) B) \((5,3)\) C) \((4,4)\) D) \((2,6)\)

✅ Correct Answer: (A) \((3,5)\)
Solving \(x+y=8\) and \(3x-y=4\) gives \(x=3, y=5\).

4. A linear-quadratic system can have at most:

A) 0 solutions B) 1 solution C) 2 solutions D) 3 solutions

✅ Correct Answer: (C) 2 solutions
A line and a parabola can intersect at a maximum of 2 points.

5. The graph of \(y = 2x^2 + x - 10\) is a:

A) Straight line B) Parabola opening upward C) Parabola opening downward D) Circle

✅ Correct Answer: (B) Parabola opening upward
Since \(a=2>0\), the parabola opens upward.

📈 Key Graphical Concepts

x-intercept: Put \(y=0\) → point where graph meets x-axis.
y-intercept: Put \(x=0\) → point where graph meets y-axis.
Solving linear systems graphically: Intersection of two lines gives the solution.
Linear-Quadratic system: Intersection points satisfy both equations; may have 0, 1, or 2 solutions.
Vertex of Parabola: \(x_v = -\frac{b}{2a}\) for \(y=ax^2+bx+c\)

❓ Frequently Asked Questions

What is taught in Exercise 2.2 of Class 10 Math Unit 2?

Exercise 2.2 covers graphical solutions: finding intercepts of linear equations, solving systems of linear equations graphically, and solving linear-quadratic systems graphically.

How many questions are there in Unit 2 Exercise 2.2?

Exercise 2.2 has 3 main questions: Question 1 (5 parts) covers finding intercepts graphically, Question 2 (5 parts) covers solving linear systems graphically, and Question 3 (2 parts) covers solving linear-quadratic systems graphically.

What is an x-intercept in graphical solutions?

The \( x \)-intercept is the point where the graph crosses the \( x \)-axis. To find it, set \( y = 0 \) and solve for \( x \).

What is a y-intercept in graphical solutions?

The \( y \)-intercept is the point where the graph crosses the \( y \)-axis. To find it, set \( x = 0 \) and solve for \( y \).

How do you solve systems of equations graphically?

To solve systems graphically, plot both equations on the same coordinate plane. The point(s) where the graphs intersect represent the solution(s) to the system.

Is this solution according to the PECTAA 2026 syllabus?

Yes, these solutions are prepared according to the PECTAA 2026 / National Curriculum 2023 syllabus for Class 10 Mathematics.

Is this Exercise 2.2 solution valid for all Punjab Boards?

Yes, the content follows the unified Punjab textbook and is applicable to students of all 10 BISE Punjab boards.

Are solved PDF notes available for Exercise 2.2?

Yes, a complete solved PDF for Exercise 2.2 is embedded on this page and available to download for free.

Can I download the Unit 2 Exercise 2.2 solution as a PDF?

Yes, use the Download PDF button on this page to save the complete solved Exercise 2.2 notes to your device.

Is Exercise 2.2 important for Class 10 board exams?

Yes, graphical solutions are frequently tested in board exams. Exercise 2.2 builds essential skills in visualizing equations and finding solutions graphically.
